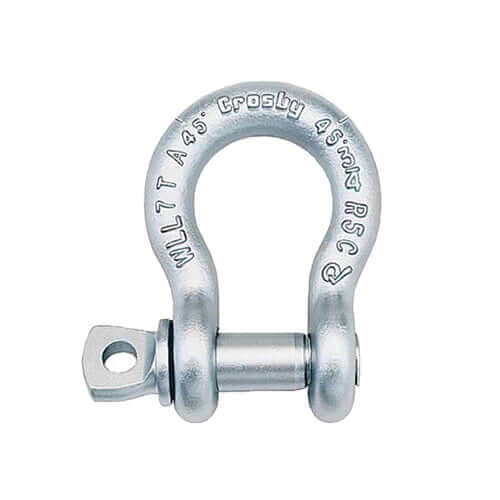

Crosby® G-209A Alloy Screw-Pin Anchor Shackle

Crosby  |  Part # 1017450
$18.72

Crosby manufactures this industry-leading alloy steel screw-pin anchor shackle. This tough and durable shackle has a 6-to-1 design factor to meet or exceed most industry standards.

  • Made in the USA
  • Forged Alloy Steel – Quenched and Tempered, with alloy pins
  • Working Load Limit permanently shown on every shackle
  • Hot Dip Galvanized
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification
  • Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F)
  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26

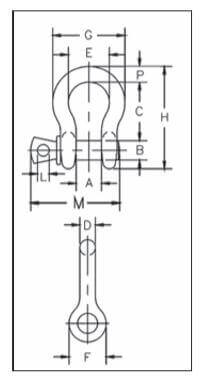

Crosby® 209A 1" Alloy Screw-Pin Anchor Shackle
Crosby

Crosby® G-209A Alloy Screw-Pin Anchor Shackle

From $18.72

Crosby manufactures this industry-leading alloy steel screw-pin anchor shackle. This tough and durable shackle has a 6-to-1 design factor to meet or exceed most industry standards.

Size

  • 3/8" (2 ton)
  • 7/16" (2.67 ton)
  • 1/2" (3.33 ton)
  • 5/8" (5 ton)
  • 3/4" (7 ton)
  • 7/8" (9.5 ton)
  • 1" (12.5 ton)
  • 1-1/8" (15 ton)
  • 1-1/4" (18 ton)
  • 1-3/8" (21 ton)
View product
