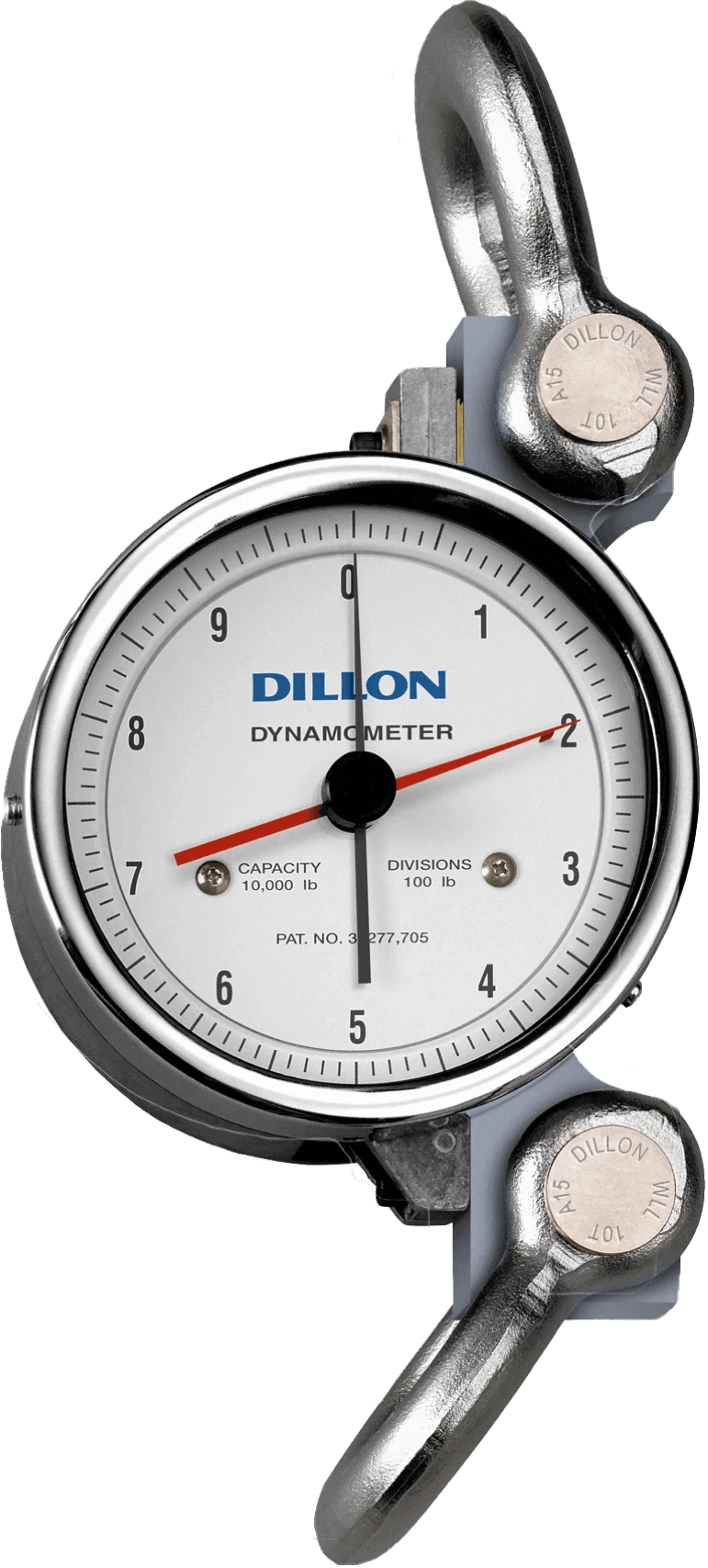

Dillon AP Dynamometer

Dillon  |  Part # 30006-0019
$1,700.00

Dillon is the leader in dynamometers with the largest installed population throughout the world. The sturdy design, top grade components and premium coatings make it last for years in severe environments and applications: the pounding aboard military vehicles, rough handling in field measurements and even use underwater (Dillon recommends short intervals in clean water followed with rinse and drain). Embraced by industrial contractors across the globe, we are confident the AP will satisfy your most demanding applications.
  • Accuracy: ± 0.5% of full scale capacity for precise data
  • Wide temperature range for use in nearly any environment (-50 to 140°F / -45 to 60°C)
  • Large safety factor for overload protection and long life
  • No batteries required
  • Dial size choice for the best in portability or visibility
  • Anti-parallax dial and pointer produce accurate readings from any perspective
  • Maximum hand retains peak load point and is easily reset
  • High strength case resists heavy blows
  • Generous shackle openings mate with most hooks and hardware
  • High specification materials on all load components. Heat treated to tight tolerances
  • Durable powder coat paint provides outstanding protection
  • Offset load beam eases tension measurement
  • Certifications: ASME b30.26 compliant on 20,000 lb (10,000 kg) and below, CE on all capacities excluding 50K
  • 5" diameter dynamometer includes a rugged plastic carry case with die-cut foam inserts. Capacities of 30,000 lbs and above are shipped in a heavy-duty reinforced plywood crate. Optional steel carry case is available for 10" diameter dynamometers up to 20,000 lb capacity
Save Product
Dillon

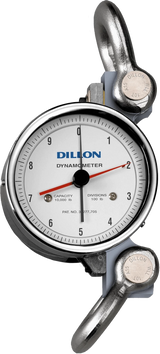

Dillon AP Dynamometer

From $1,610.00
Dillon is the leader in dynamometers with the largest installed population throughout the world. The sturdy design, top grade components and premium coatings make it last for years in severe environments and applications: the pounding aboard military vehicles, rough handling in field measurements and even use underwater (Dillon recommends short intervals in clean water followed with rinse and drain). Embraced by industrial contractors across the globe, we are confident the AP will satisfy your most demanding applications.
  • Accuracy: ± 0.5% of full scale capacity for precise data
  • Wide temperature range for use in nearly any environment (-50 to 140°F / -45 to 60°C)
  • Large safety factor for overload protection and long life
  • No batteries required
  • Dial size choice for the best in portability or visibility
  • Anti-parallax dial and pointer produce accurate readings from any perspective
  • Maximum hand retains peak load point and is easily reset
  • High strength case resists heavy blows
  • Generous shackle openings mate with most hooks and hardware
  • High specification materials on all load components. Heat treated to tight tolerances
  • Durable powder coat paint provides outstanding protection
  • Offset load beam eases tension measurement
  • Certifications: ASME b30.26 compliant on 20,000 lb (10,000 kg) and below, CE on all capacities excluding 50K
  • 5" diameter dynamometer includes a rugged plastic carry case with die-cut foam inserts. Capacities of 30,000 lbs and above are shipped in a heavy-duty reinforced plywood crate. Optional steel carry case is available for 10" diameter dynamometers up to 20,000 lb capacity

Size - Capacity - Increment

  • 5" Dial -500 lb x 5 lb
  • 5" Dial -1,000 lb x 10 lb
  • 5" Dial - 2,000 lb x 20 lb
  • 5" Dial -4,000 lb x 25 lb
  • 5" Dial -5,000 lb x 50 lb
  • 5" Dial -8,000 lb x 50 lb
  • 5" Dial -10,000 lb x 100 lb
  • 5" Dial -15,000 lb x 100 lb
  • 5" Dial -20,000 lb x 200 lb

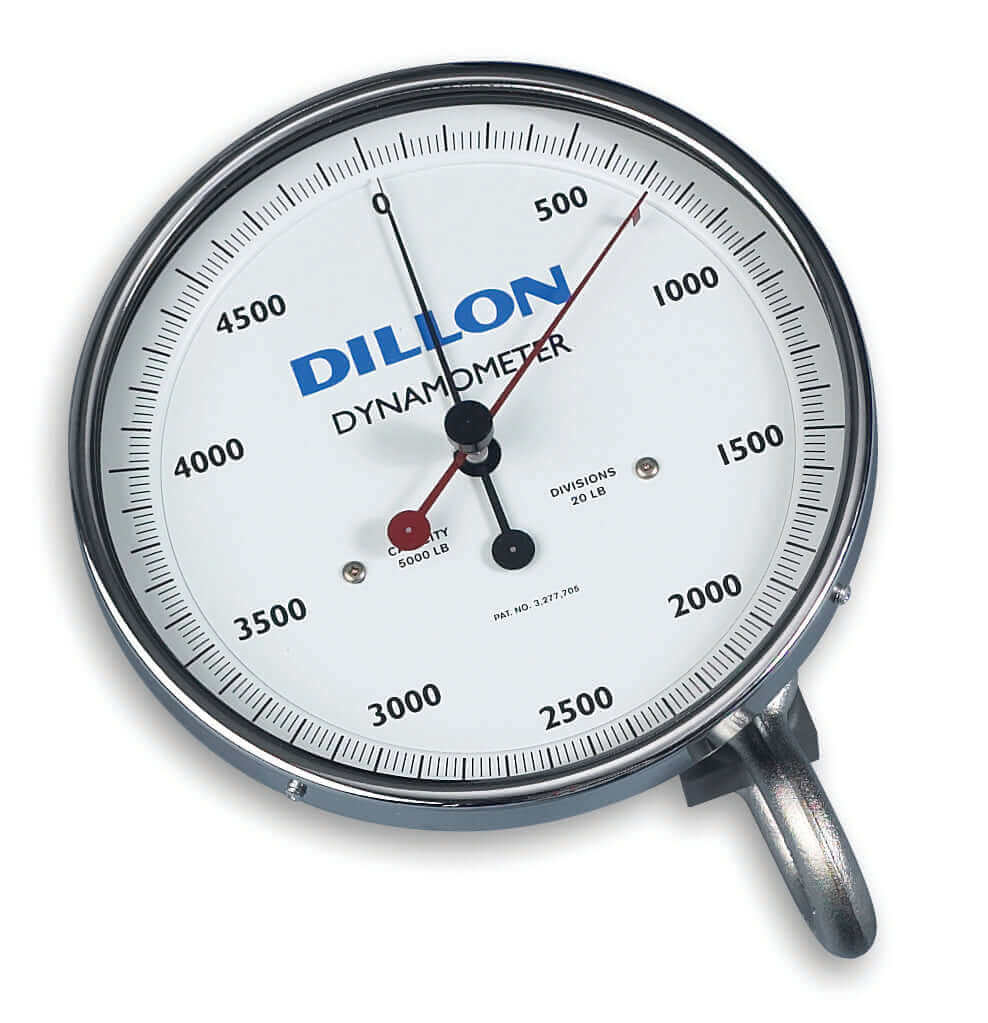

  • 10" Dial - 1,000 lb x 5 lb
  • 10" Dial - 2,000 lb x 10 lb
  • 10" Dial - 5,000 lb x 20 lb
  • 10" Dial - 10,000 lb x 50 lb
  • 10" Dial - 20,000 lb x 100 lb
  • 10" Dial - 30,000 lb x 200 lb
  • 10" Dial - 50,000 lb x 200 lb
