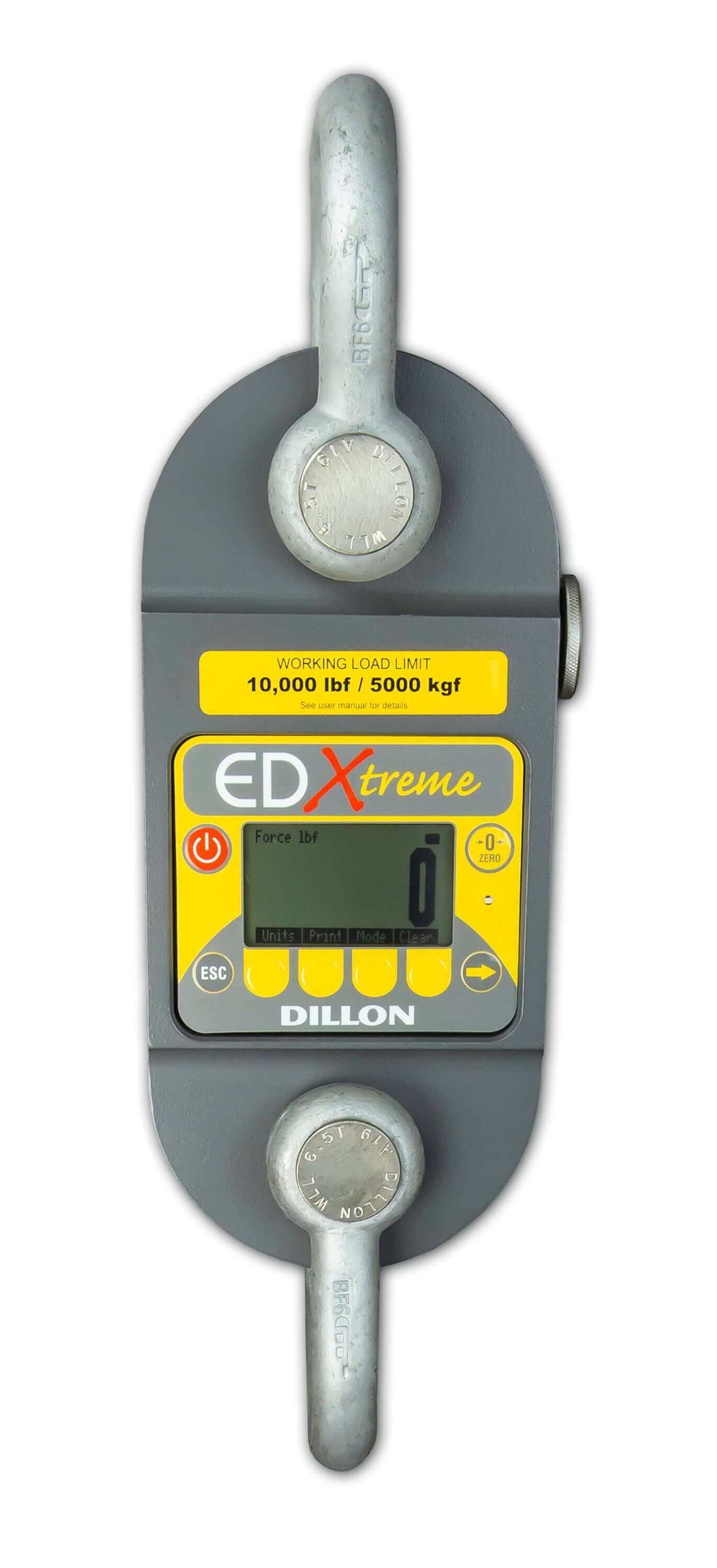

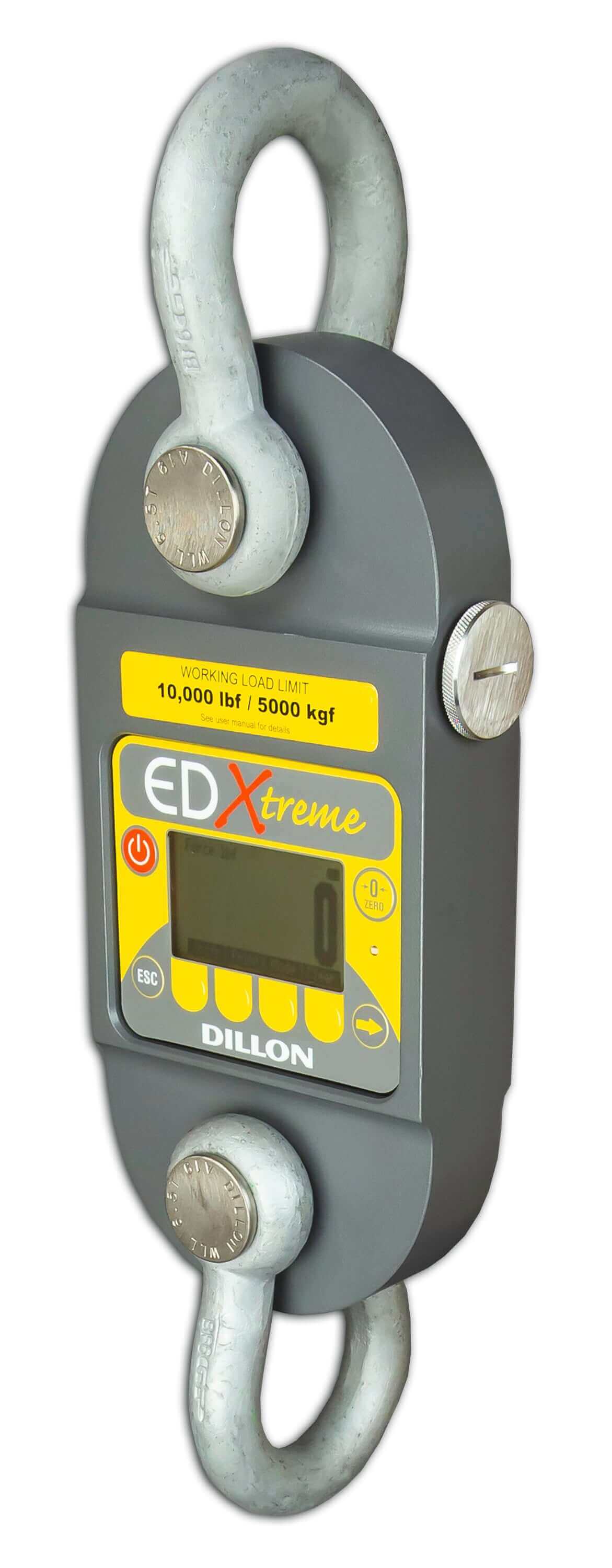

Dillon EDExtreme Dynamometer

Dillon EDExtreme Dynamometer

Dillon  |  Part # AWT05-506302
$3,965.00

The EDXtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium grade materials to achieve a 5:1 minimum factor of safety.*

While the EDXtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDXtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location. It is the definition of application versatility.

  • Includes: Dynamometer w/shackles, certificate of calibration, manual and batteries, plastic case for 1 ton - 50 ton models, larger models come in rugged plywood case
  • Shackles sold separately

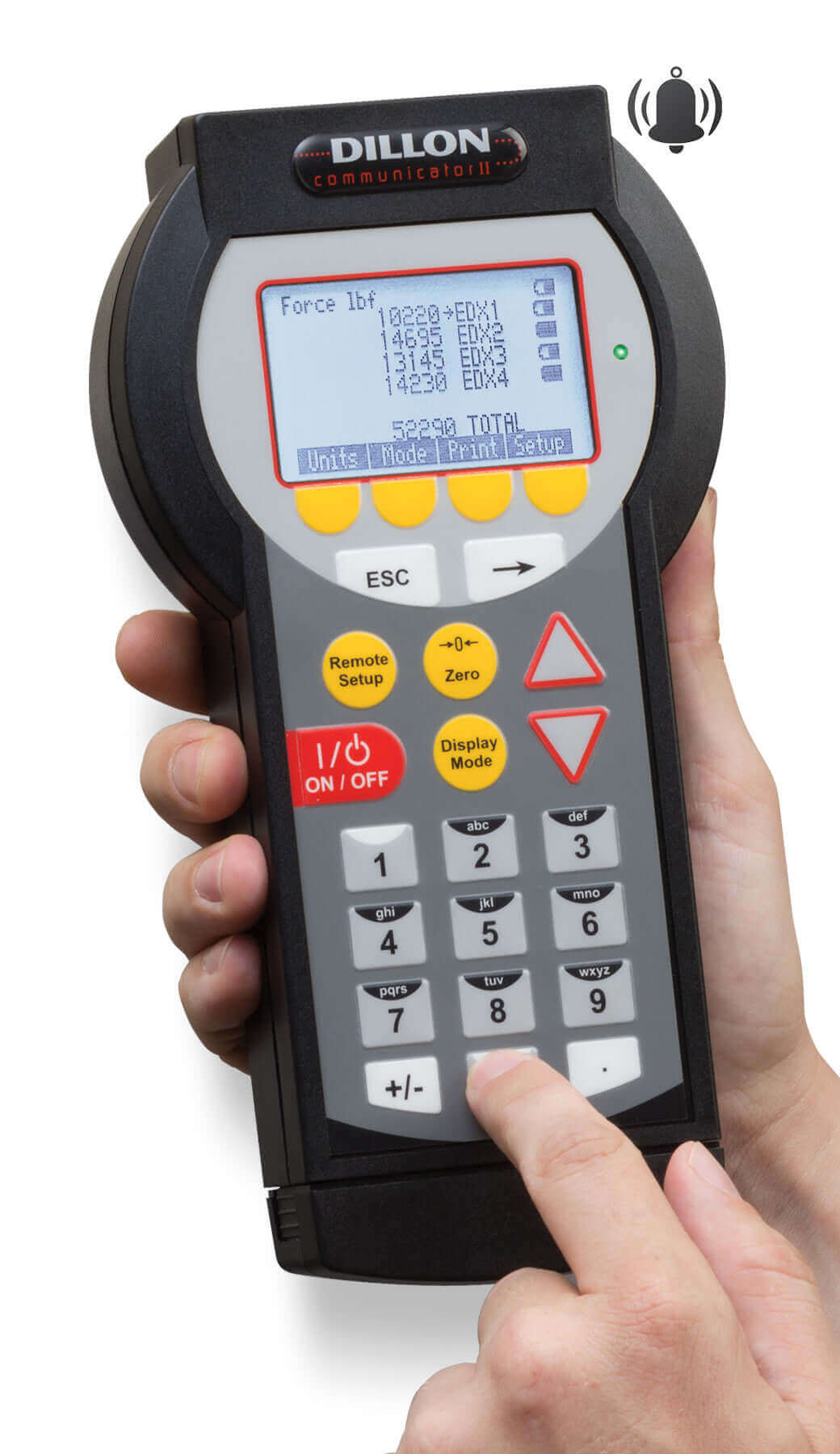

  • Optional wireless communicator available as an add-on
  • High accuracy: +-0.1% of capacity
  • High speed data capture from 10Hz, 100Hz and 1000Hz
  • Low, medium and high selectable resolution
  • Continuous on-board logging with date and time
  • Multiple display modes
  • Choose your unit of measure: lb, kg, N or custom units
  • Easy to read high brightness LCD display
  • Truly rugged and reliable
  • Plug and play remote (auto connect)
  • Long battery life
Save Product
Dillon

Dillon EDExtreme Dynamometer

From $3,965.00

The EDXtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium grade materials to achieve a 5:1 minimum factor of safety.*

While the EDXtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDXtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location. It is the definition of application versatility.

  • Includes: Dynamometer w/shackles, certificate of calibration, manual and batteries, plastic case for 1 ton - 50 ton models, larger models come in rugged plywood case
  • Shackles sold separately
  • Optional wireless communicator available as an add-on
  • High accuracy: +-0.1% of capacity
  • High speed data capture from 10Hz, 100Hz and 1000Hz
  • Low, medium and high selectable resolution
  • Continuous on-board logging with date and time
  • Multiple display modes
  • Choose your unit of measure: lb, kg, N or custom units
  • Easy to read high brightness LCD display
  • Truly rugged and reliable
  • Plug and play remote (auto connect)
  • Long battery life

Capacity

  • 2,500 lb
  • 5,000 lb
  • 10,000 lb
  • 25,000 lb
  • 55,000 lb
  • 100,000 lb
  • 160,000 lb
  • 220,000 lb

Optional Wireless Communicator

  • No
  • Yes
