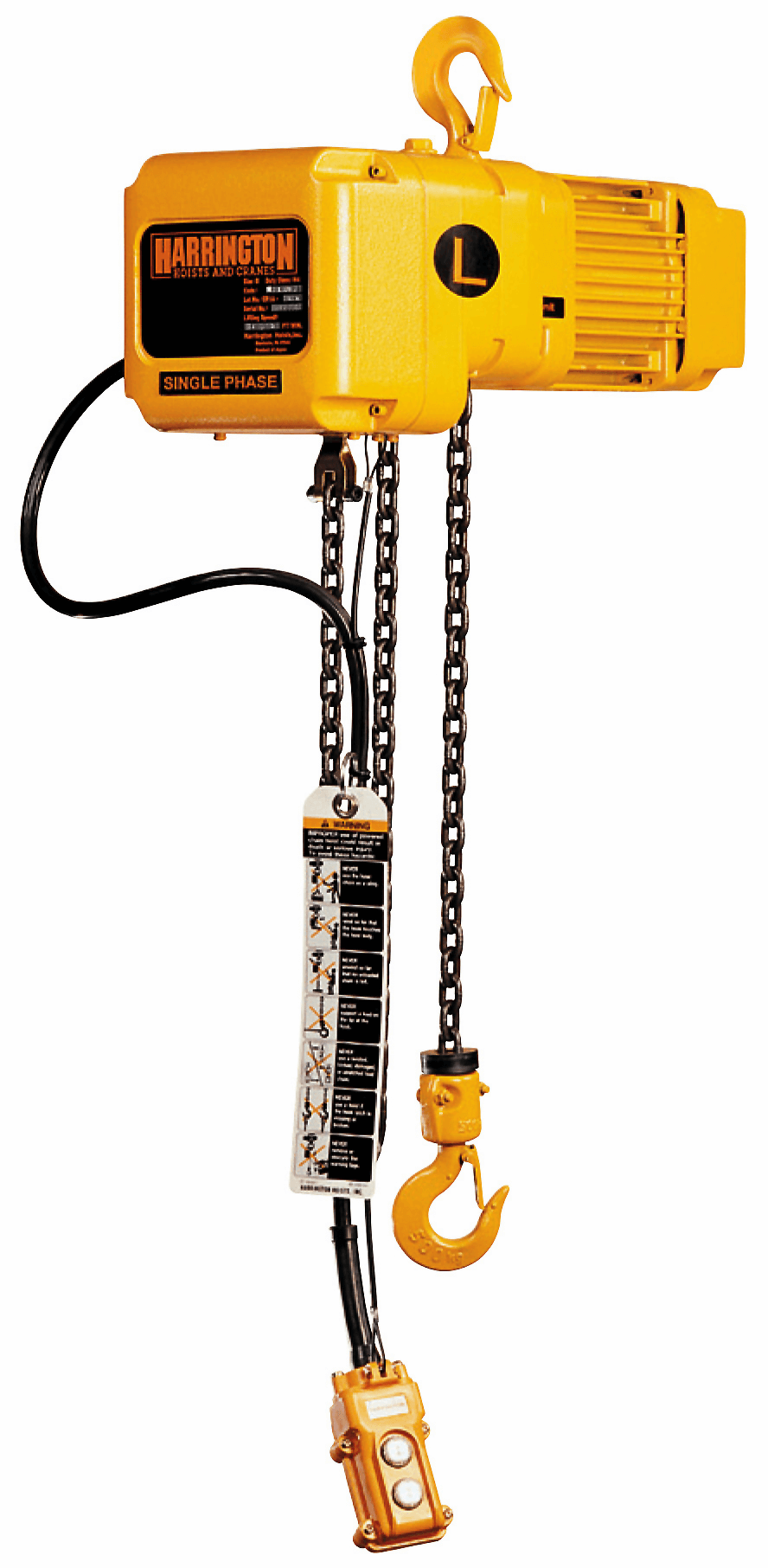

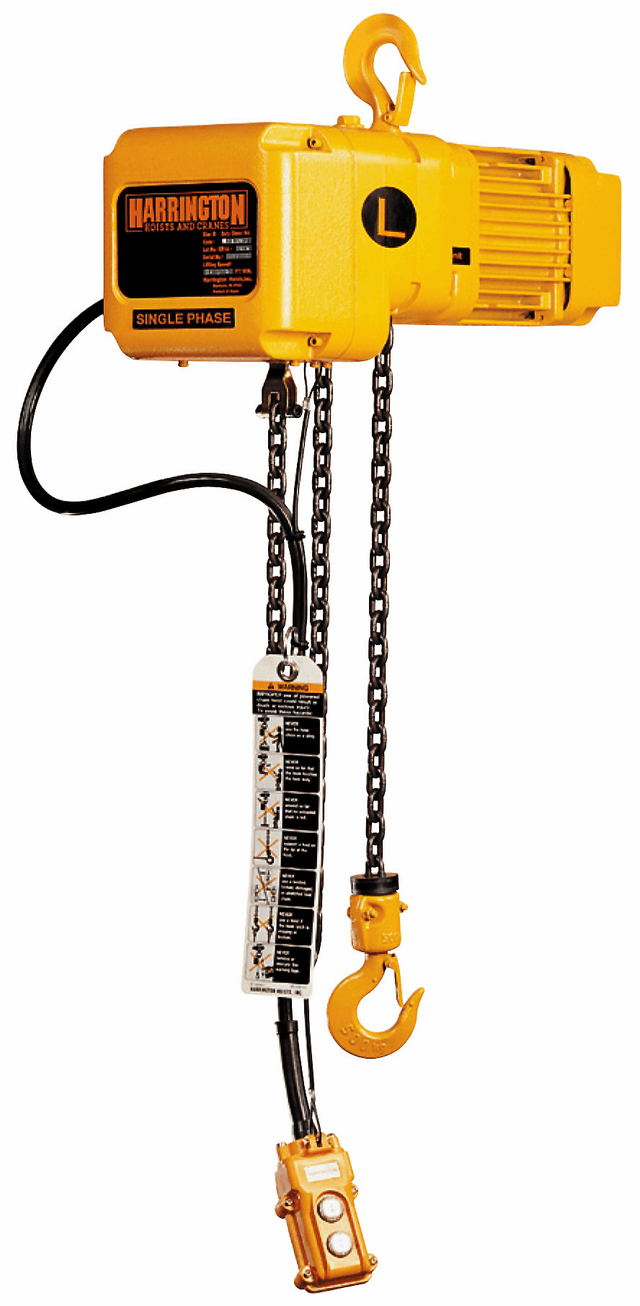

Harrington 1/4 Ton Single Phase Electric Hoist
Couldn't load pickup availability
- 14 ft/min lift speed
- Single phase, 115/230 volt
- Includes chain container
- 60 minute, H4 rated, fan cooled motor for the most demanding applications
- Pull-rotor electric brake is self-adjusting and virtually maintenance-free
- Ability to accommodate very long lifts
- Compact, low headroom design
- Completely sealed body suitable for harsh indoor or outdoor environments - IP55 rated
- Hoists are available in different speeds & lengths of lift!!
SELF-ADJUSTING MAINTENANCE-FREE BRAKE
With no brake coil to fail or discs to replace, the electromagnetic pull rotor brake on the SNER is self-adjusting and virtually maintenance-free.
EXTREME-DUTY, SINGLE-PHASE FAN-COOLED MOTOR
The SNER electric hoist is equipped with a 60-minute H4-rated motor which is unmatched in a single-phase offering. Built for extremes, the SNER delivers proven performance in the most demanding applications.
HEAVY CAST-IRON CHAIN GUIDE
The heavy cast-iron chain guide provides quiet and smooth chain movement. Easily removed without disassembly of the hoist, it allows for easy maintenance in those demanding heavy-duty applications.
OIL BATH-LUBRICATED, HEAT-TREATED GEARING
Harrington’s own heat-treating process increases the overall hardness and strength of internal parts which run smoothly when immersed in an oil bath. This extends service life by reducing friction, vibration, and heat.
