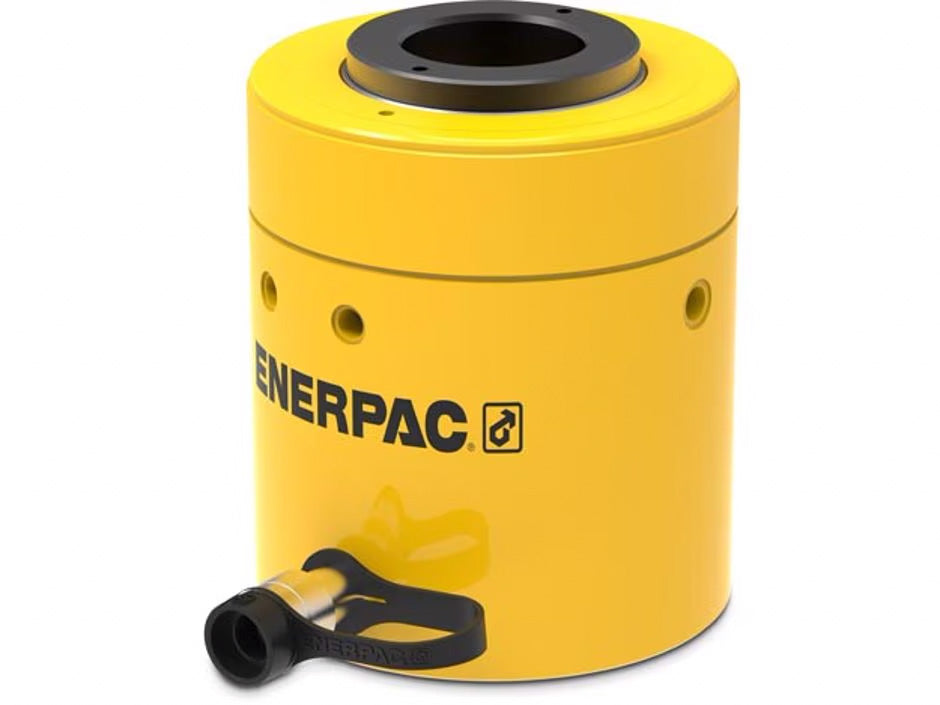

Enerpac 103.1 Ton Hollow Plunger Cylinder

Enerpac  |  Part # RCH1003
$7,114.00

RCH-Series Single-Acting, Hollow Plunger Hydraulic Cylinders feature a hollow bore to apply both pull and push forces. A threaded steel rod can be run through the hollow bore of the cylinder and attached to a load to either push or pull the load, or to apply tension. 

  • 3.11" center hole diameter
  • 103.1  ton rating
  • Stroke Length: 3.00"
  • Collapsed Height: 10.00"
  • Extended Height: 13.00"
  • 10,000 psi
  • Enerpac hollow plunger cylinders provide versatility in testing, maintenance and tensioning applications
  • Hollow plunger design allows for both, pull and push forces
  • Single-acting, spring return
  • Cylinders are nickel-plated, floating center tube on models over 20 tons increases product life
  • Baked enamel finish for increased corrosion resistance
  • Collar threads for easy fixturing
