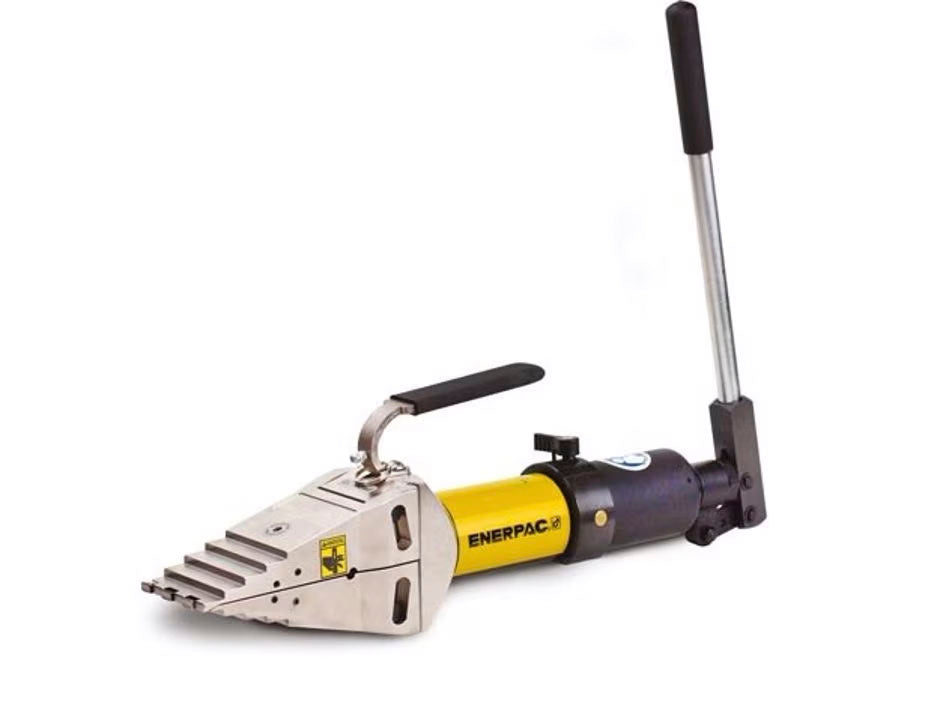

Enerpac 14 Ton Integral Hydraulic Wedge Spreader

Enerpac  |  Part # FSC14
$3,872.00

The FSC14 Flange Spreader with its integral pump offers a convenient solution capable of exerting up to 14 tons of force (118 kN). The all-in-one design eliminates the need for a separate pump and a trailing hydraulic hose - ideal for safer working in difficult spaces at remote locations.

These flange maintenance tools fit into very small clearance gaps of 0.24 inch (6 mm). They use a friction-free, smooth, parallel wedge movement to prevent flange damage and spreading arm failure.

  • Maximum Spread: 3.16"
  • Maximum Spreading Force: 14 ton
  • Tip Clearance: 0.24"
  • Weight: 19.84 lbs
  • Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
  • Unique interlocking wedge design: no first step bending and risk of slipping out of joint
  • Requires very small access gap of only 0.24 inch (6 mm)
  • Stepped spreader arm design: each step can spread under full load
  • Few moving parts means durability and low maintenance
  • Safety block SB1 and single-acting cylinder included
