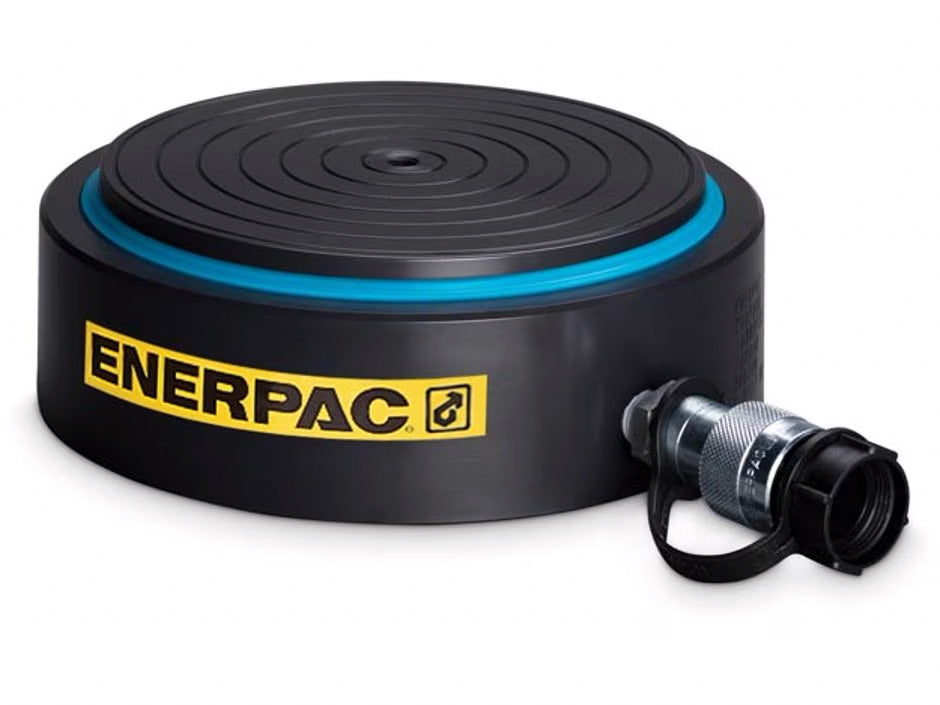

Enerpac CUSP Low Height, High Tonnage, Ultra Flat Cylinders

Enerpac  |  Part # CUSP10
$950.00

CUSP-Series Low Height Hydraulic Cylinders, also known as hydraulic pancake cylinders, combine an impressive power to height ratio with a tilting saddle function to distribute the load evenly and prevent side load.

These are available in several high-tonnage capacities, making them the right choice for confined spaces where other cylinders will not fit.

  • Available in 10.9 ton - 1142.6 ton range
  • 10,000 psi
  • Single acting
  • Up to 4% side load of maximum capacity
  • Extremely low collapsed height
  • Integrated tilting function up to 4 degrees to evenly distribute the load
  • Nitrocarburized surface treatment for harsh conditions
  • "Red Line" for visual maximum stroke limitation Up to 4% side load of maximum capacity
  • Coupler included
Enerpac

Enerpac CUSP Low Height, High Tonnage, Ultra Flat Cylinders

From $950.00

CUSP-Series Low Height Hydraulic Cylinders, also known as hydraulic pancake cylinders, combine an impressive power to height ratio with a tilting saddle function to distribute the load evenly and prevent side load.

These are available in several high-tonnage capacities, making them the right choice for confined spaces where other cylinders will not fit.

Tonnage & Stroke Length

  • 10.9 Ton, 0.26" Stroke
  • 22.2 Ton, 0.28" Stroke
  • 34.8 Ton, 0.29" Stroke
  • 61.8 Ton, 0.52" Stroke
  • 89 Ton,0.55" Stroke
  • 121.1 Ton,0.58" Stroke
  • 178.6 Ton,0.56" Stroke
  • 235 Ton 0.59" Stroke
  • 285.6 Ton 0.61" Stroke
  • 355.9 Ton 0.56" Stroke
  • 450.5 Ton 0.57" Stroke
  • 574.8 Ton 0.60" Stroke
  • 672.9 Ton 0.61" Stroke
  • 846 Ton 0.64" Stroke
  • 1142.6 Ton 0.69" Stroke
