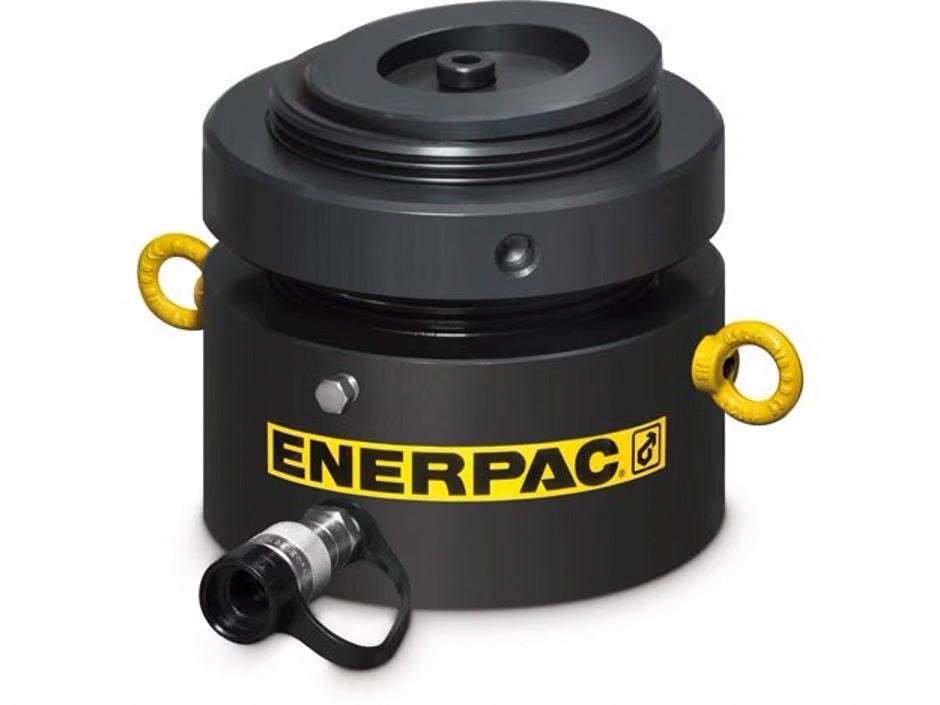

Enerpac LPL Low Height, Lock Nut Cylinders

Enerpac  |  Part # LPL602
$2,567.00

LPL-Series hydraulic cylinders are ideal for heavy-duty applications where clearance space is restricted. The lock nut provides the reassurance of mechanical load holding for extended periods, helping to ensure safety on the job site.

LPL-Series hydraulic cylinders are ideal for heavy-duty applications where clearance space is restricted. The lock nut provides the reassurance of mechanical load holding for extended periods, helping to ensure safety on the job site.

  • Available in 68 ton - 575 ton range
  • 10,000 psi
  • Lock nut provides mechanical load holding for a safe work environment
  • Integrated tilt saddle allows for up to 5 degrees of misalignment
  • Extreme low-height for use in confined areas
  • 10% side-load resistance of maximum capacity
  • Overflow port as stroke limiter to prevent plunger blow-out
  • Single-acting, gravity-return
Enerpac

Enerpac LPL Low Height, Lock Nut Cylinders

From $2,567.00

LPL-Series hydraulic cylinders are ideal for heavy-duty applications where clearance space is restricted. The lock nut provides the reassurance of mechanical load holding for extended periods, helping to ensure safety on the job site.

LPL-Series hydraulic cylinders are ideal for heavy-duty applications where clearance space is restricted. The lock nut provides the reassurance of mechanical load holding for extended periods, helping to ensure safety on the job site.

Tonnage & Stroke Length

  • 68 Ton, 1.97" Stroke
  • 113 Ton, 1.97" Stroke
  • 179 Ton, 1.77" Stroke
  • 223 Ton, 1.77" Stroke
  • 286 Ton,1.77" Stroke
  • 450 Ton,1.77" Stroke
  • 575 Ton,1.77" Stroke
