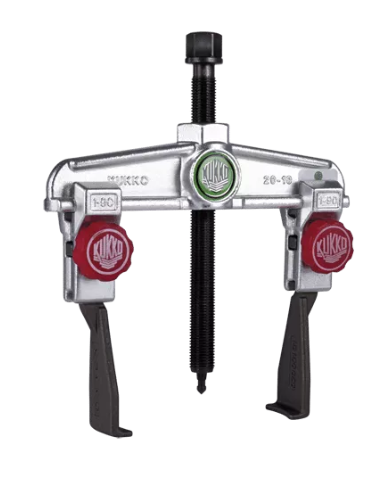

Kukko Narrow Universal 2-Jaw Puller

Gedore  |  Part # 20-1+S
$193.00

This 2-Jaw Puller offers a thin pulling hook with quick adjusting capability quick adjust that work in every position, even under a full load. The cross-beam allows for infinitely variable adjustment of the hooks, while the spindle can be easily adjusted with the 2-sided spindle tip. A mechanical pressure screw and milled thread with a special coating ensure optimal performance. Designed with two arms for efficient space-saving operation.

  • Thin pulling hook with quick adjusting capability quick adjust
  • Parallel pulling hooks in every position, even with full load
  • Pulling hooks with infinitely variable adjustment on the cross-beam
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip)
  • Strong design, high performance and long service life
  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrome VI)
  • A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench
  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions
  • Turning the pulling hooks enables them to be used both internally and externally
  • Suitable for pulling asymmetric workpieces
  • Spindle head band prevents the wrench from slipping off
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system
  • Quality made in Germany
Gedore

Kukko Narrow Universal 2-Jaw Puller

From $193.00

This 2-Jaw Puller offers a thin pulling hook with quick adjusting capability quick adjust that work in every position, even under a full load. The cross-beam allows for infinitely variable adjustment of the hooks, while the spindle can be easily adjusted with the 2-sided spindle tip. A mechanical pressure screw and milled thread with a special coating ensure optimal performance. Designed with two arms for efficient space-saving operation.

Opening/Reach/Tonnage

  • 3.50" / 3.875" / 2.5 Ton
  • 4.75" / 3.875" / 2.5 Ton
  • 6.375" / 5.875" / 5.5 Ton
  • 7.875" / 5.875" / 5.5 Ton
  • 9.875" / 7.875" / 9.5 Ton
  • 13.75" / 7.875" / 9.5 Ton
