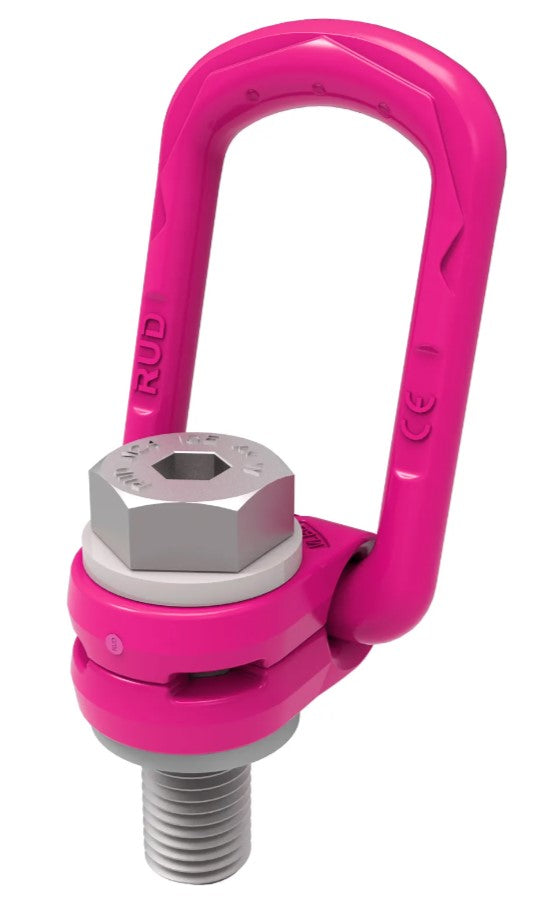

Rud VLBG-Plus Swivel Load Ring

Rud VLBG-Plus Swivel Load Ring

Rud  |  Part # 8504651
$122.98

The RUD VLBG-PLUS Load Ring features a 4:1 safety factor and is fully tested and approved by DGUV. This grade 12 load ring is specifically designed for extreme temperatures, ranging from -40˚C up to 100˚C and up to a maximum of 350˚C with a reduced WLL. Its 360˚ swivel and 180˚ pivot guarantee a flawless connection every time. Additionally, the VLBG-PLUS showcases RUD's renowned Grade 12 ICE Bolt, which can be easily replaced if needed!
  • Captive but exchangeable RUD-Bolt
  • Load ring is storable and pivots in all directions
  • The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple  hinging of the lifting means is possible or a flat design in the folded state
  • Bracket adjustable in force direction
  • With a fully captive but easy to demount, 100% crack detected hexagon head cap bolt
  • Comprehensive range of threads
Save Product
Rud

Rud VLBG-Plus Swivel Load Ring

From $120.83
The RUD VLBG-PLUS Load Ring features a 4:1 safety factor and is fully tested and approved by DGUV. This grade 12 load ring is specifically designed for extreme temperatures, ranging from -40˚C up to 100˚C and up to a maximum of 350˚C with a reduced WLL. Its 360˚ swivel and 180˚ pivot guarantee a flawless connection every time. Additionally, the VLBG-PLUS showcases RUD's renowned Grade 12 ICE Bolt, which can be easily replaced if needed!

Size

  • 8mm bolt x 11mm thread protrusion, 0.63 Ton
  • 10mm bolt x 15mm thread protrusion, 0.9 Ton
  • 12mm bolt x 18mm thread protrusion, 1.35 Ton
  • 16mm bolt x 22mm thread protrusion, 2.0 Ton
  • 20mm bolt x 32mm thread protrusion, 3.5 Ton
  • 24mm bolt x 37mm thread protrusion, 4.5 Ton
  • 30mm bolt x 49mm thread protrusion, 6.7 Ton
  • 36mm bolt x 63mm thread protrusion, 8.0 Ton
  • 42mm bolt x 63mm thread protrusion, 15.0 Ton
  • 48mm bolt x 73mm thread protrusion, 20 Ton
